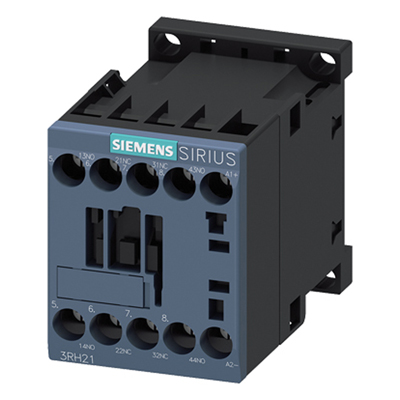

Contactor Relay Size S00, screw terminal

Siemens

Item ID: 3RH21221BB40

Contactor relay, 2 NO + 2 NC, 24 V DC, Size S00, screw terminal

Depth (In.)	73
Application area	For Switching The Control Signals In The Control Circuit
Required spacing / with side-by-side mounting / upwards	10
Protection against electrical shock	finger-safe
Width (In)	45
Installation altitude / at height above sea level / maximum	2000
Required spacing / for live parts / forwards	10
Required spacing / for grounded parts / upwards	10
Ambient operating temp min/max	-25/60
Type of voltage for the control supply voltage	DC
Required spacing / with side-by-side mounting / at the side	0
Surge voltage resistance / rated value	6
Required spacing / for grounded parts / downwards	10
Required spacing / for grounded parts / forwards	10
Product type designation	3RH2 - Auxiliary contactor
Required spacing / with side-by-side mounting / forwards	10
Product brand name	SIRIUS
Ambient storage temp min/max	-55
Required spacing / for live parts / at the side	6
Brand	Siemens
Country of Origin	GERMANY
Mounting Option	screw and snap-on mounting onto 35 mm standard mounting rail
UPC	662643903409
