Timing Relay Screw terminal

Siemens

Item ID: 3RP25051RW30

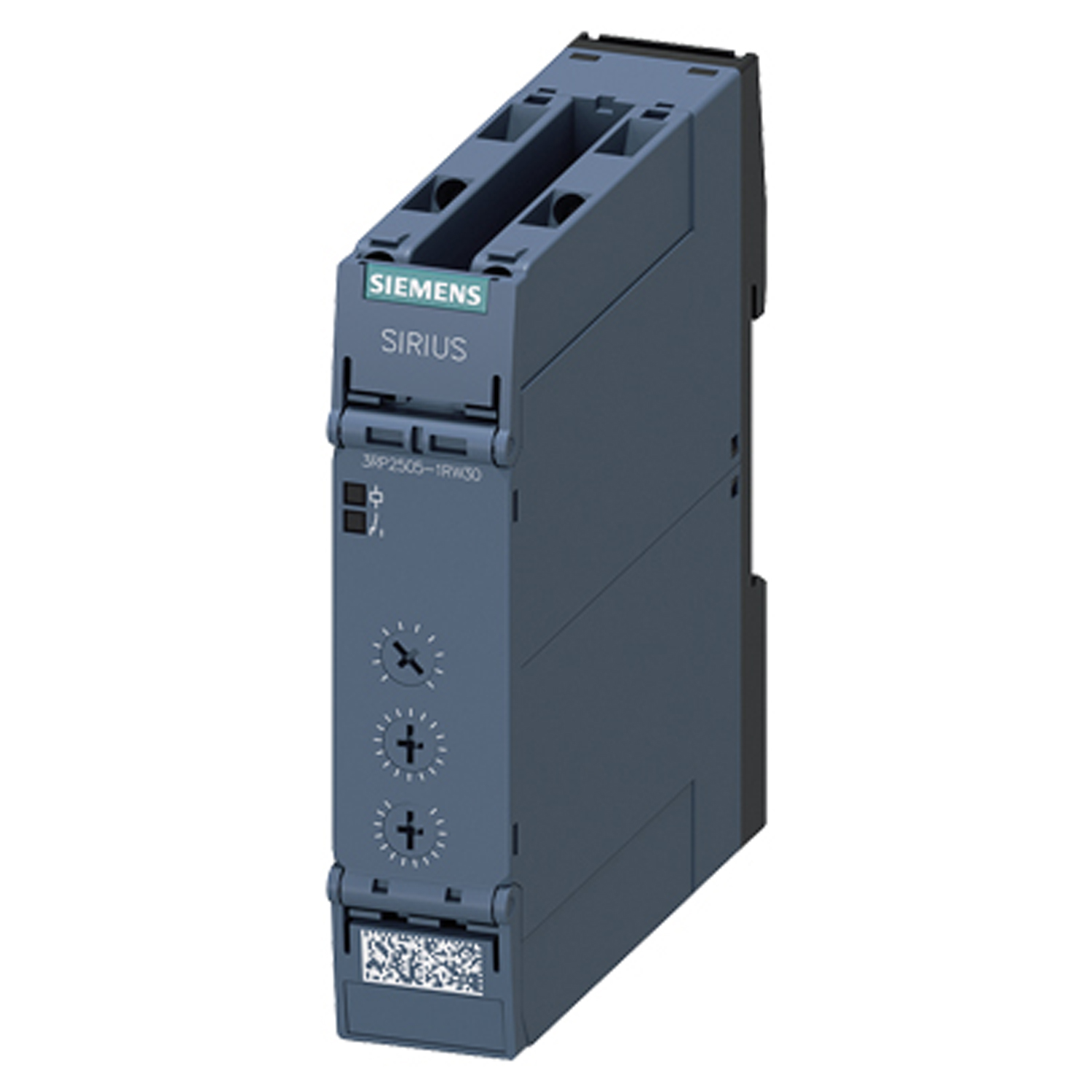

Timing relay, Multifunction 2 change-over contacts, 13 functions Positively driven Relay contacts 24...240 V AC/DC at 50/60 Hz AC 7 time ranges (0.05 s...100 h) with LED, Screw terminal

Applications/Features

AWG number / as coded connectable conductor cross section / solid / minimum: 20
AWG number / as coded connectable conductor cross section / solid / maximum: 12
AWG number / as coded connectable conductor cross section / stranded / minimum: 20
AWG number / as coded connectable conductor cross section / stranded / maximum: 14

Item Specifications

Depth (In.)	90
Application area	For All Switching Operations Involving Time Delays In Control, Starting, Protection And Regulation Circuits
Type of connectable conductor cross-sections / finely stranded / with core end	1x (0.5 ... 4 mm?), 2x (0.5 ... 1.5 mm?)
Required spacing / with side-by-side mounting / upwards	0
Protection against electrical shock	finger-safe
Number of NO contacts / delayed switching	0
Width (In)	22.5
Connectable conductor cross-section / solid / minimum	0.50 m
Removable terminal for auxiliary and control circuit	Yes
Field-bound parasitic coupling / acc. to IEC 61000-4-3	10 V/m
Vibration resistance / acc. to IEC 60068-2-6	10 ... 55 Hz / 0.35 mm
Mechanical service life (switching cycles)	10000000
Type of connectable conductor cross-sections / at AWG conductors / stranded	1x (20 ... 12), 2x (20 ... 14)
Required spacing / for live parts / forwards	0
Conducted interference / due to burst / acc. to IEC 61000-4-4	2 kV network connection / 1 kV control connection
Conducted interference / due to conductor-conductor surge / acc. to IEC 61000-4	1 kV
Required spacing / for grounded parts / upwards	0
Relative repeat accuracy	1
Required spacing / for grounded parts / Backwards	0
Conducted interference / due to conductor-earth surge / acc. to IEC 61000-4-5	2 kV
Ambient operating temp min/max	-40/70
Number of NC contacts / delayed switching	0
Connectable conductor cross-section / solid / maximum	4.00 m
Type of voltage for the control supply voltage	AC/DC
Connectable conductor cross-section / finely stranded / with core end processing	4.00 m
Required spacing / with side-by-side mounting / at the side	0
Surge voltage resistance / rated value	4000 V
Required spacing / for grounded parts / downwards	0
Type of connectable conductor cross-sections / solid	1x (0.5 ... 4.0 mm?), 2x (0.5 ... 2.5 mm?)
Electrostatic discharge / acc. to IEC 61000-4-2	4 kV contact discharge / 8 kV air discharge
Required spacing / for grounded parts / forwards	0
Product type designation	3RP25 - timing relay
Protection class IP	IP20
Required spacing / with side-by-side mounting / forwards	0
Required spacing / for live parts / Backwards	0
Type of connectable conductor cross-sections / at AWG conductors / solid	1x (20 ... 12), 2x (20 ... 14)
Product brand name	SIRIUS
Ambient temp during transport min/max	-40/85
Number of CO contacts / delayed switching	2
Operating frequency / with 3RT2 contactor / maximum	5000
Ambient storage temp min/max	-40
Shock resistance / acc. to IEC 60068-2-27	11g / 15 ms
Electrical endurance (switching cycles) / at AC-15 / at 230 V / typical	100000
Required spacing / for live parts / at the side	0
Brand	Siemens
Country of Origin	GERMANY
Mounting Option	screw and snap-on mounting onto 35 mm standard mounting rail
UPC	804766327605
