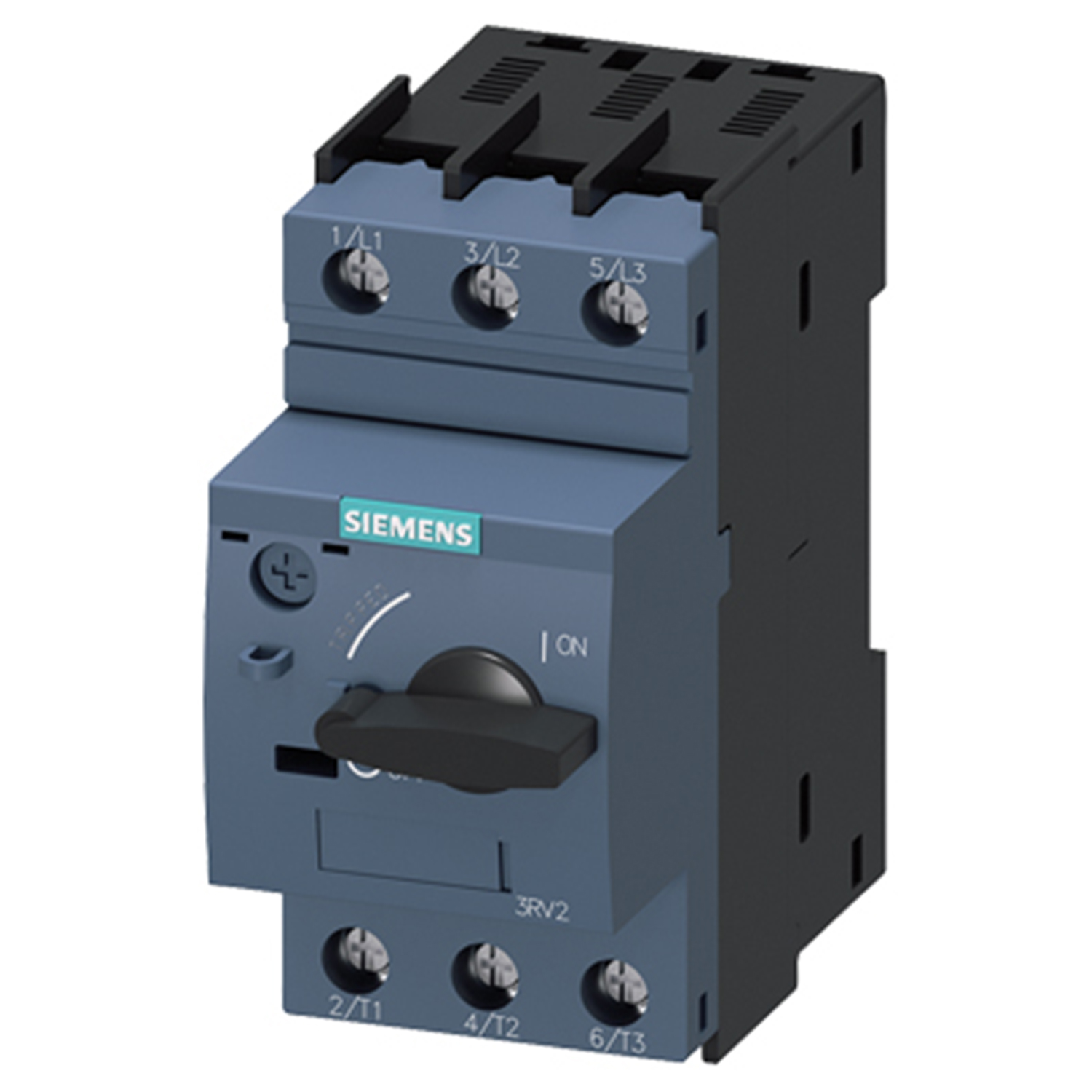

Circuit Breaker size S0 for motor protection, CLASS 10

Siemens

Item ID: 3RV20214FA10

Circuit breaker size S0 for motor protection, CLASS 10 A-release 34...40 A N-release 480 A screw terminal Standard switching capacity

Depth (In.)	97
Application area	For The Reliable Shutdown In The Event Of A Short-Circuit And For Protecting The Loads And System Against Overload, And For Safe Isolation Of The System From The Network
Max relative humidity during operation	95
Required spacing / with side-by-side mounting / upwards	70
Protection against electrical shock	finger-safe
Width (In)	45
Removable terminal for auxiliary and control circuit	No
Phase failure detection	Yes
Installation altitude / at height above sea level / maximum	2000
Required spacing / for live parts / forwards	0
Required spacing / for grounded parts / upwards	70
Required spacing / for grounded parts / Backwards	0
Ambient operating temp min/max	-20/60
Required spacing / with side-by-side mounting / at the side	9
Surge voltage resistance / rated value	6
Required spacing / for grounded parts / downwards	70
Required spacing / for grounded parts / forwards	0
Product type designation	3RV2 - Circuit breaker
Required spacing / with side-by-side mounting / forwards	0
Product brand name	SIRIUS
Ambient temp during transport min/max	-50/80
Ambient storage temp min/max	-50
Shock resistance / acc. to IEC 60068-2-27	25g / 11 ms
Required spacing / for live parts / at the side	30
Brand	Siemens
Country of Origin	GERMANY
Mounting Option	screw and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 60715
Number of Poles	3
UPC	662643924534
