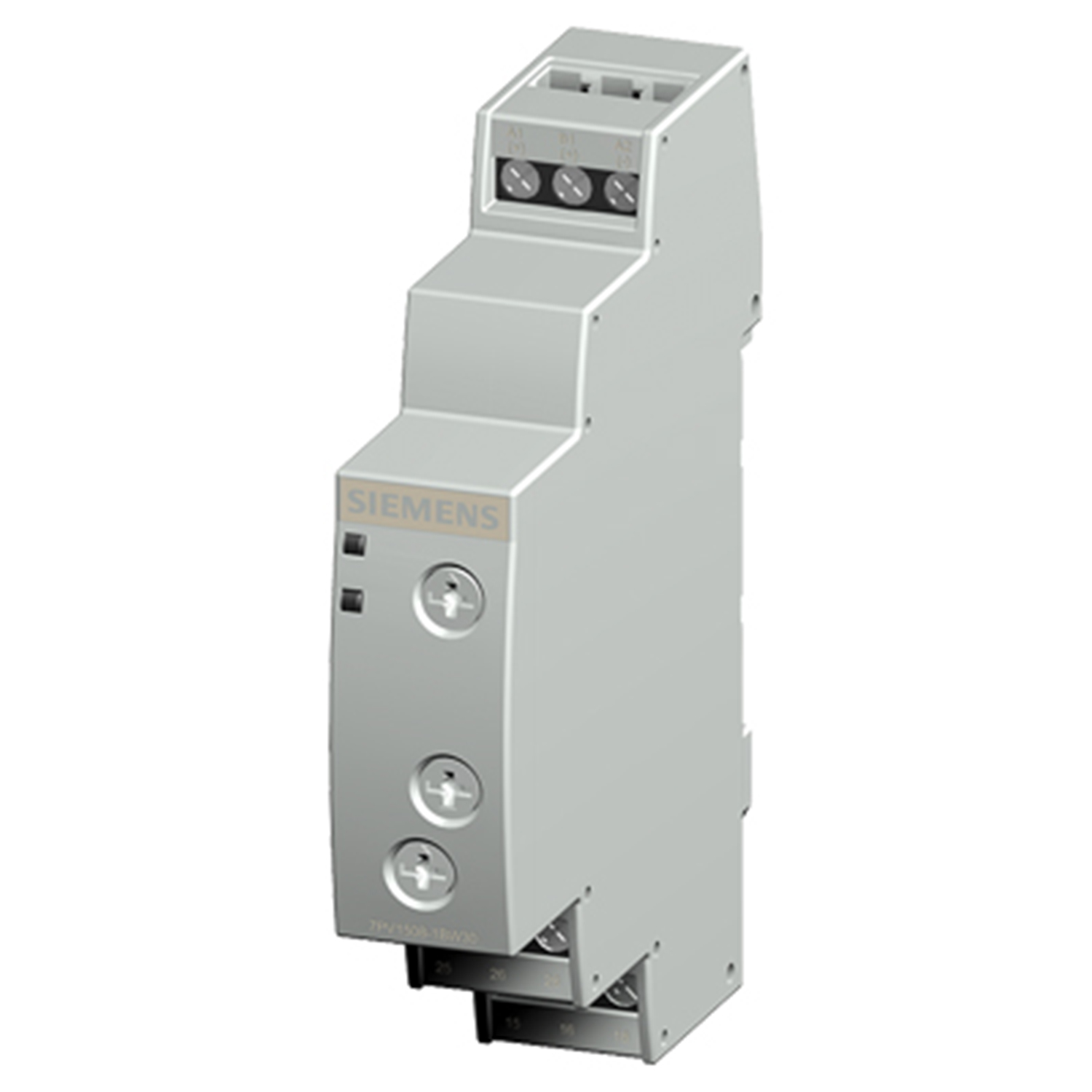

Timing Relay electronic Multifunction 2 change-over contact

Siemens

Item ID: 7PV15081BW30

Timing relay, electronic Multifunction 2 change-over contacts, 7 functions 7 time ranges 0.05 s ... 100 h 12-240 V AC/DC with LED, Screw terminal

Applications/Features

Power loss [W] / maximum: 2
AWG number / as coded connectable conductor cross section / solid / minimum: 24
AWG number / as coded connectable conductor cross section / solid / maximum: 14
AWG number / as coded connectable conductor cross section / stranded / minimum: 24
AWG number / as coded connectable conductor cross section / stranded / maximum: 14

Item Specifications

Depth (In.)	66.7
Application area	For All Switching Operations Involving Time Delays In Control, Starting, Protection And Regulation Circuits. Can Be Used In The Control Cabinet Or Distribution Board
Max relative humidity during operation	85
Type of connectable conductor cross-sections / finely stranded / with core end	1x (0.25 ... 1.5 mm?)
Required spacing / with side-by-side mounting / upwards	0
Protection against electrical shock	finger-safe
Number of NO contacts / delayed switching	0
Type of connectable conductor cross-sections / finely stranded / without core	1x (0.2 ... 1.5 mm?)
Width (In)	17.5
Connectable conductor cross-section / solid / minimum	0.2
Removable terminal for auxiliary and control circuit	No
Field-bound parasitic coupling / acc. to IEC 61000-4-3	10 V/m
Vibration resistance / acc. to IEC 60068-2-6	10 ... 55 Hz: 0.35 mm
Installation altitude / at height above sea level / maximum	2000
Mechanical service life (switching cycles)	10000000
Type of connectable conductor cross-sections / at AWG conductors / stranded	1x (24 ... 14)
Required spacing / for live parts / forwards	0
Conducted interference / due to burst / acc. to IEC 61000-4-4	2 kV network connection / 1 kV control connection
Conducted interference / due to conductor-conductor surge / acc. to IEC 61000-4	1 kV
Required spacing / for grounded parts / upwards	0
Relative repeat accuracy	2
Required spacing / for grounded parts / Backwards	0
Conducted interference / due to conductor-earth surge / acc. to IEC 61000-4-5	2 kV
Ambient operating temp min/max	-25/55
Number of NC contacts / delayed switching	0
Connectable conductor cross-section / solid / maximum	2.5
Type of voltage for the control supply voltage	AC/DC
Connectable conductor cross-section / finely stranded / with core end processing	1.5
Required spacing / with side-by-side mounting / at the side	0
Surge voltage resistance / rated value	4000 V
Required spacing / for grounded parts / downwards	0
Type of connectable conductor cross-sections / solid	1x (0.2 ... 2.5 mm?)
Electrostatic discharge / acc. to IEC 61000-4-2	4 kV contact discharge / 8 kV air discharge
Required spacing / for grounded parts / forwards	0
Product type designation	7PV15 - timing relay
Protection class IP	IP20
Required spacing / with side-by-side mounting / forwards	0
Connectable conductor cross-section / finely stranded / without core end processing	0.2
Required spacing / for live parts / Backwards	0
Type of connectable conductor cross-sections / at AWG conductors / solid	1x (24 ... 14)
Product brand name	SIRIUS
Ambient temp during transport min/max	-40/70
Number of CO contacts / delayed switching	2
Connectable conductor cross-section / finely stranded / without core end process	1.5
Operating frequency / with 3RT2 contactor / maximum	5000
Ambient storage temp min/max	-40
Shock resistance / acc. to IEC 60068-2-27	11g / 15 ms
Electrical endurance (switching cycles) / at AC-15 / at 230 V / typical	100000
Required spacing / for live parts / at the side	0
Brand	Siemens
Country of Origin	Czech Republic
Mounting Option	snap-on fastening on 35 mm standard rail
UPC	887621415938
